ecoSolargy Solar Panel
ECO230S156P-60, 230w
Made in USA. Poly-crystalline solar module with a high cell efficiency of
17.8%. DC 600V; Vmp 29.80V; Imp 7.71A; Voc 37.10V; Isc 8.21A. Panel
dimensions: 64.4" x 39.1" x 1.6". Weight: 41.9 lb (19kg). Frame:
anodized aluminum alloy. Connector: MC4. Manufacturer warranty: 25
years for 80% performance output; 10 years for 90% performance
output.
¡Esta página está bajo construcción. Vuelva pronto para que se beneficie de
nuestra amplia gama de productos e incomparables precios!
Combiner Box
MNPV6
The most popular PV combiner in North America! Gray aluminum type 3R
rainproof enclosure with insulating dead front, will accept six 150VDC
breakers or four 600/1000VDC fuse holders. Includes 15 position PV
negative bus bar, 14 position ground bus bar, 120 amp Plus bus bar for
breakers and 80 amp bus bar for fuses.
Specs
Description

Inverter / Charger
XW 6048
Xantrex brings the next generation of inverter/charger to market, with
the XW Hybrid Inverter/ Charger, the heart of the XW System. The XW
Hybrid Inverter/Charger (XW) is a true sine wave, 120/240-volt AC,
split-phase, inverter/charger that incorporates a DC to AC inverter, a
battery charger, and an AC auto-transfer switch. It is the foundation for
battery- based residential and commercial applications up to 18
kilowatts (kW). Capable of being grid-interactive or grid
independent,
the XW can operate with generators and renewable energy sources to
provide full-time or backup power.
LED Light
T8, 18W, 120/277V
Replace traditional T8 32w with only 18W. LED tubes also last
significantly longer, with an average operating life of 50,000 hours that
reduces the frequency of bulb changes. LED tubes provide an energy
savings of 40% or more over compact fluorescent lights (CFL).
Charge Controller
XW MPPT 60a
The Xantrex XW Solar Charge Controller tracks the electrical maximum
power point of a PV array to deliver the maximum available current for
charging batteries. When charging, the XW SCC regulates battery
voltage and output current based on the amount of energy available
from the PV array and state-of-charge of the battery. It can be used
with 12, 24, 36, 48, and 60-volt DC battery systems.
$399.00 / box
(3 modules by box)

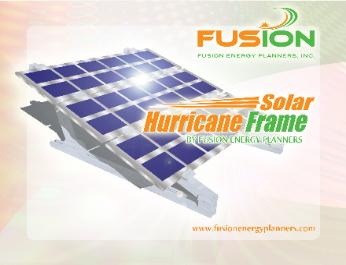

Solar Hurricane Frame
Designed by our engineers, for tropical weather. Tilt angle
from 0 to 90 grades. Can be used with any solar panel brand
and measure. Comes in a box with rack for 3 modules.
PV Ready Back-Up System
Sistema de emergencia que le provee capacidad para conectar 4KW.
Posee onda pura, lo que le permite conectar computadoras,
televisores plasma y otros equipos sensitivos sin que se afecten o se
dañen. Olvídese de comprar combustible y del molestoso ruido de las
plantas eléctricas. Las baterías del Fusion Back Up System se cargan
con electricidad. ¡Sus componentes no hacen ruido! Además, las
baterías y el inversor poseen 5 años de garantía por los
manufactureros. Este sistema 120/240 está preparado para
fotovoltaico, sólo hay que añadir los paneles solares y el controlador si
desea convertirlo en un sistema solar. Si desea más información,
escríbanos a
4KW, 400 A/HR
4KW, 800 A/HR
Charge Controller
FLEXmax 60
Is the latest innovation in Maximum Power Point Tracking (MPPT) charge
controllers from OutBack Power Systems. It's innovative algorithm is
both continuous and active, increasing your renewable energy yield up
to 30%. Thanks to enhanced cooling, the FLEXmax 60 can operate at its
full 60 amp maximum current rating in ambient temperatures as high as
104°F (40°C). Included in the FLEXmax 60 are all of the features of
OutBack first developed MX60, such as support for a wide range of
nominal battery voltages and the ability to step-down a high voltage
solar array to recharge a low voltage battery. A built-in backlit display
shows status information at the touch of a button.
admin@fepinc.net
Con gusto lo orientaremos.
Request Quote
Request Quote
Fusion
Back-Up System
In Stock and
Ready to Ship!
In Stock
and Ready to Ship!
In Stock
and Ready to Ship!
In Stock
and Ready to Ship!
More Info
In Stock
and Ready to Ship!
© 2005 - 2017 Fusion Energy Planners, Inc. All rights reserved.
$250 cu
En adición a los sistemas fotovoltaicos completos, tenemos una amplia gama de
componentes para sistemas solares, reducción de consumo y otros. Estos son
algunos de los equipos disponibles.
